The Model C2 line-up
Find the Model C2 that fits your floor.
Five autonomous carts with the same Quasi AI® software, safety systems, and under-an-hour setup. They differ in size, payload, and drivetrain.
All 5 models fit
-

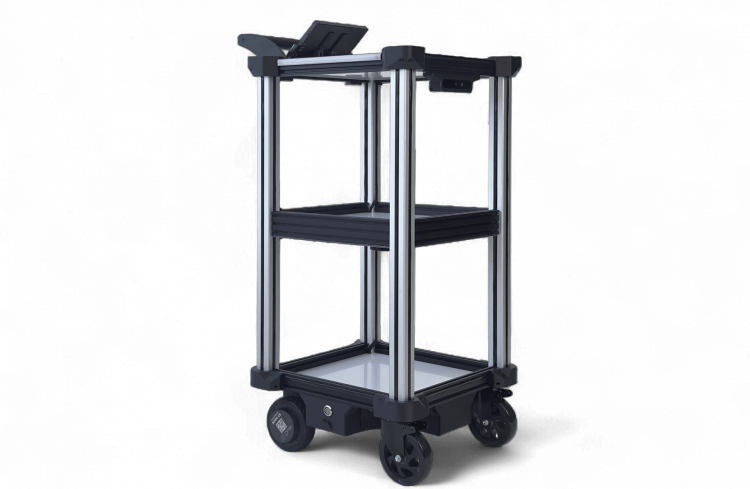

Outside your filtersC2 Mini
Tightest layouts
Ideal for smaller items and super tight layouts.
- 150 lb
- 2.5 ft aisles
-

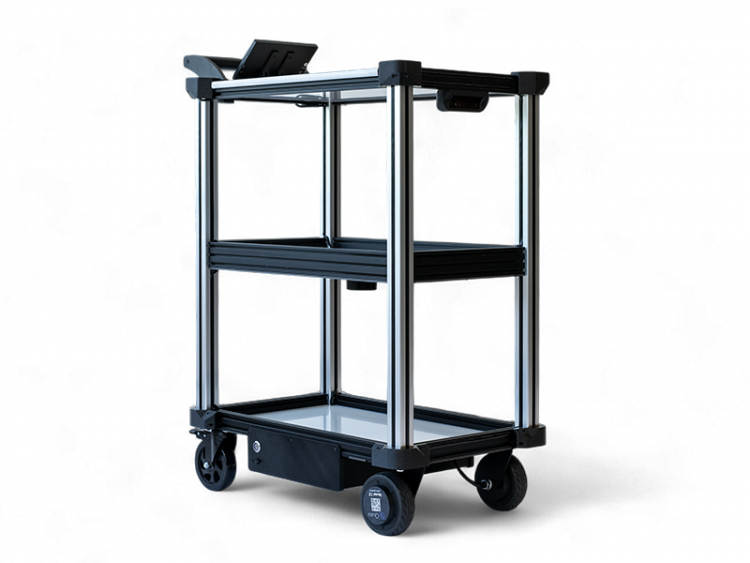

Outside your filtersC2 Standard
Everyday deliveries
The versatile original for everyday facility transport.
- 180 lb
- 3 ft aisles
-
Wireless charging

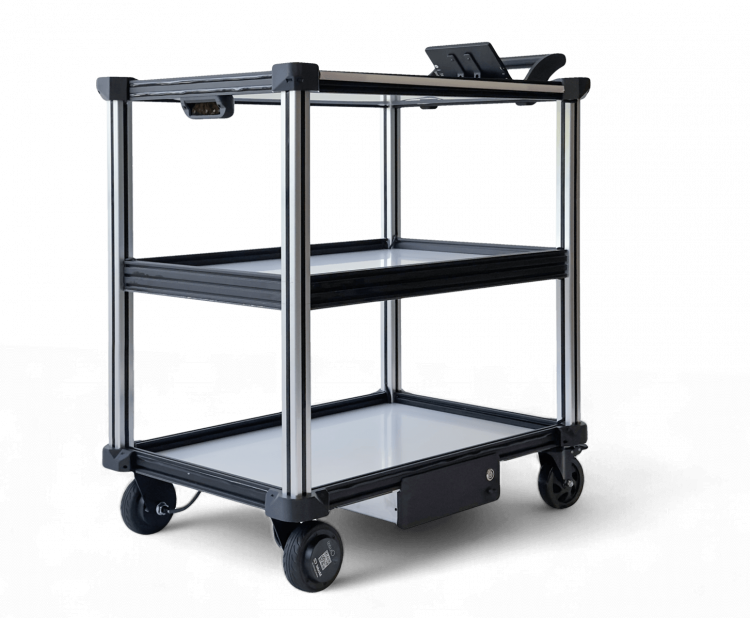

Outside your filtersC2 Large
Oversized components
Extended capacity for larger loads and oversized bins.
- 225 lb
- 4 ft aisles
-
Wireless charging

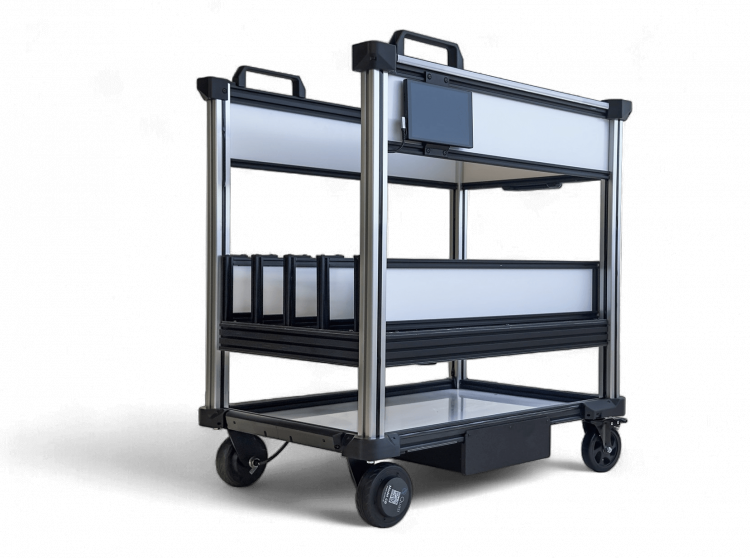

Outside your filtersC2 PartPorter
Panels & sheet material
Purpose-built for panels, boards, and sheet materials.
- 250 lb
- 5 ft aisles
-
New
Wireless charging
Outside your filtersC2 Heavy
Industrial-weight loads
Reinforced build with four-wheel-drive Mecanum wheels and heavy-duty suspension.
- 500 lb
- 4 ft aisles
Side by side
Compare every model
| Specification | C2 Mini | C2 Standard | C2 Large | C2 PartPorter | C2 Heavy |
|---|---|---|---|---|---|
| Capacity & size | |||||
| Total payload suggested maximum | 150 lb 70 kg | 180 lb 82 kg | 225 lb 100 kg | 250 lb 113 kg | 500 lb 227 kg |
| Payload per shelf | 50 lb 22.5 kg | 60 lb 27 kg | 75 lb 34 kg | 125 lb 56.5 kg | 250 lb 113.5 kg |
| Shelves | 3 | 3 | 3 | 2 | 2 |
| Shelf size | 14.6 × 14.6 in 370 × 370 mm | 24.4 × 14.6 in 620 × 370 mm | 32.25 × 20.5 in 820 × 520 mm | 32.25 × 20.5 in 820 × 520 mm | 32.25 × 20.5 in 820 × 520 mm |
| Minimum aisle width | 2.5 ft 0.76 m | 3 ft 0.9 m | 4 ft 1.2 m | 5 ft 1.5 m | 4 ft 1.2 m |
| Footprint length × width | 18.5 × 18.5 in 470 × 470 mm | 33 × 18.5 in 840 × 470 mm | 40.5 × 24.42 in 1030 × 620 mm | 40.5 × 24.42 in 1030 × 620 mm | 40.5 × 24.42 in 1030 × 620 mm |
| Height | 41.5 in 1055 mm | 41.5 in 1055 mm | 41.5 in 1055 mm | 41.5 in 1055 mm | 43 in 1090 mm |
| Weight with battery | 44.1 lb 20 kg | 50.7 lb 23 kg | 61.7 lb 28 kg | 59.5 lb 27 kg | 125.5 lb 57 kg |
| Drive & navigation | |||||
| Drivetrain | Two-wheel drive | Two-wheel drive | Two-wheel drive | Two-wheel drive | Four-wheel drive |
| Steering | Differential | Differential | Differential | Differential | Mecanum |
| Time-of-Flight safety sensors | 16 sensors, 1,024-point infrared array | 26 sensors, 1,664-point infrared array | 26 sensors, 1,664-point infrared array | 26 sensors, 1,664-point infrared array | 26 sensors, 1,664-point infrared array |
| Navigation sensors | 360° LiDAR, stereo vision camera, and infrared sensor array on every model | ||||
| Maximum working area | Up to 500,000 sq ft 46,500 m² | ||||
| Maximum slope mark ramps with a slope zone | 10° (about 18% grade) empty; about 5% grade half loaded, 3% fully loaded | ||||
| Speed | Configurable in the interface | ||||
| Battery & charging | |||||
| Run time up to | 16 hours | 16 hours | 16 hours | 16 hours | 14 hours |
| Energy stored | 720 Wh | 720 Wh | 720 Wh | 720 Wh | 1,440 Wh |
| Fast charge to 50% | ~60 min | ~60 min | ~60 min | ~60 min | ~90 min |
| Full charge | ~2.5 hours | ~2.5 hours | ~2.5 hours | ~2.5 hours | ~4 hours |
| Wireless docking & charging | Not available | Not available | Optional | Optional | Optional |
| Battery | NCA chemistry with battery management system about 3 years or 1,000 charge cycles | ||||
Need display, connectivity, sensor, environmental, or shipping details? See the complete technical specifications.
On every model
Same software and safety, whichever you choose.
-
Quasi AI navigation
360° LiDAR, a 3D depth camera, and a Time-of-Flight sensor array steer around people and obstacles in real time.
How it navigates -
Onboard touchscreen
Draw zones, build routes, and send the cart anywhere with one tap. No training required.
See the controls -
C2 Remote app
Call a cart from any phone, tablet, or browser over local Wi-Fi.
About the app -
Works with Cloud Connect®
Fleet analytics, ROI reporting, and support in your browser, in sync with each robot.
Explore Cloud Connect -
Setup in under an hour
Map your space, set Waypoints, and start delivering. Expert deployment help is available.
How setup works -
Certified for safety
CE and UKCA certified, and designed, tested, and documented for U.S. requirements.
Compliance details
Add-ons & accessories
Make your Model C2 your own
Accessories fit every model except C2 Mini.
-
NewWireless docking & charging
Automatic, contactless charging for C2 Large, PartPorter, and Heavy.
-
Locking storage drawer
A lockable drawer under the top shelf for documents and sensitive items.
-
Modular trays & bins
Configurable bins, trays, and compartments to organize parts and supplies.
-
Wireframe baskets
Durable, open baskets that keep items organized and easy to see.
-
Extendable shelf walls
Clear side walls keep cargo secure, whatever the route.
-
Tool & parts organizers
Custom organizers designed around your tools, parts, and workflow.
-
Stack light
Flashes and beeps while Model C2 is moving, so people nearby know it’s coming.
-
Emergency stop button
A physical stop button on the cart, in addition to the one on the touchscreen.
Not sure which model fits?
Tell us what you move and where. We’ll recommend the right Model C2 and show it working in a short demo.
