Compact AMR cart

Model C2 Mini

Our most agile AMR cart, built for precise delivery of lighter loads in the tightest spaces. It turns in place and fits 2.5 ft aisles.

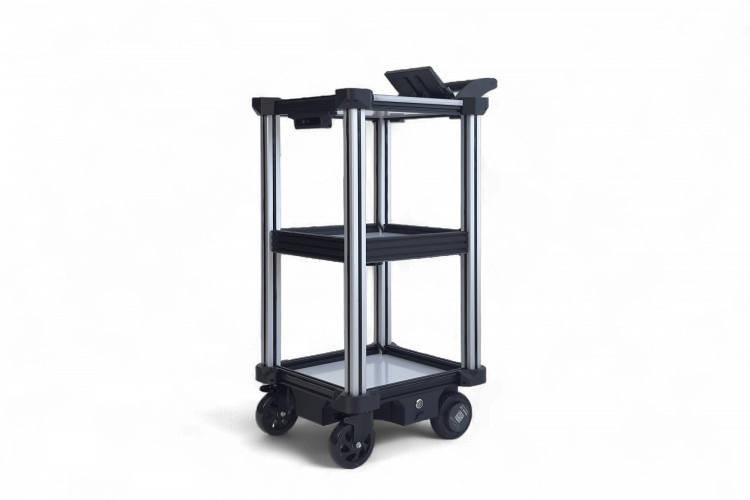

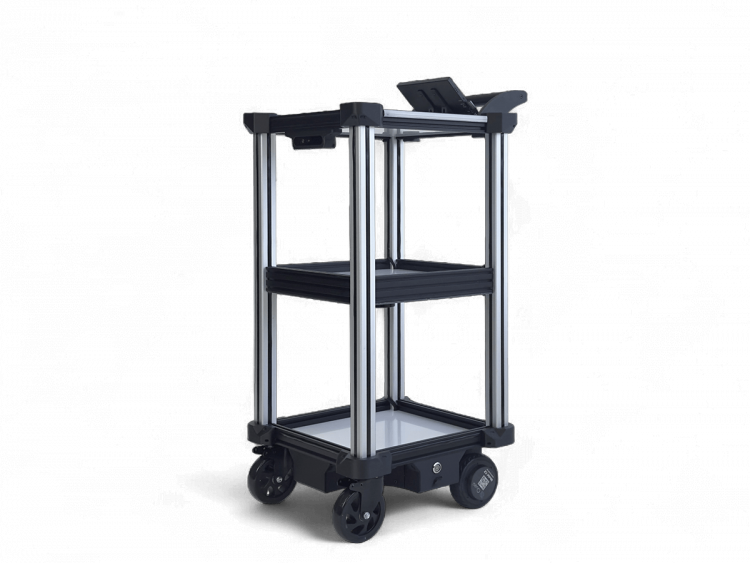

Model C2 Mini autonomous mobile cart with three square shelves
Payload capacity
150 lb
Minimum aisle width
2.5 ft
Shelves
3 × 50 lb
Run time, up to
16 hrs

Is it the right fit?

For spaces where bigger robots can’t go.

C2 Mini automates deliveries through crowded labs, narrow passages, and dense workcells, where every square foot counts.

Great for moving

  • Samples & specimens
  • Lab consumables
  • Reagents & kits
  • Small parts
  • Tools
  • Documents & mail
  • Educational kits
  • Library materials

Between

  • Lab benches
  • Analytical instruments
  • Workcells
  • Classrooms & STEM labs
  • Offices
Model C2 cart beside a lab bench while a scientist works at a microscope

What’s different

Small footprint. Full Model C2.

  • Turns in place

    A square chassis turns on the spot, so it handles tight corners and dense workcells with ease.

  • Fits where others can’t

    Works in aisles as narrow as 2.5 ft and through standard doorways, with no changes to your facility.

  • Load from any side

    Equal-sided 14.6 × 14.6 in shelves you can reach from any angle, so loading at the bench is quick.

  • Safe in crowded spaces

    Time-of-Flight sensing (16 sensors, 1,024-point infrared array) and Quasi AI collision avoidance watch for people on every side.

  • Runs all day

    Up to 16 hours on a charge, with a fast charge to 50% in ~60 min.

Watch

See C2 Mini in motion.

Specifications

C2 Mini at a glance

The numbers that matter for planning your floor and your loads.

Model C2 Mini specifications
Capacity & size
Total payload suggested maximum150 lb 70 kg
Payload per shelf50 lb 22.5 kg
Shelves3
Shelf size14.6 × 14.6 in 370 × 370 mm
Minimum aisle width2.5 ft 0.76 m
Footprint length × width18.5 × 18.5 in 470 × 470 mm
Height41.5 in 1055 mm
Weight with battery44.1 lb 20 kg
Drive & navigation
DrivetrainTwo-wheel drive
SteeringDifferential
Time-of-Flight safety sensors16 sensors, 1,024-point infrared array
Navigation sensors360° LiDAR, stereo vision camera, and infrared sensor array on every model
Maximum working areaUp to 500,000 sq ft 46,500 m²
Maximum slope mark ramps with a slope zone10° (about 18% grade) empty; about 5% grade half loaded, 3% fully loaded
SpeedConfigurable in the interface
Battery & charging
Run time up to16 hours
Energy stored720 Wh
Fast charge to 50%~60 min
Full charge~2.5 hours
Wireless docking & chargingNot available
BatteryNCA chemistry with battery management system about 3 years or 1,000 charge cycles
Shipping
Shipping crate48 × 40 × 30 in 1219 × 1016 × 762 mm
Shipping weight99 lb 45 kg

Options & ownership

Everything else you’ll want to know.

  • Add-ons for your workflow

    An extra-range LiDAR for wide areas, and specialized air and gas analyzers.

    See all options
  • Same software as every Model C2

    Quasi AI navigation, the onboard touchscreen, the C2 Remote app, and Cloud Connect® all work the same way on C2 Mini.

    Software & app
  • Buy it or subscribe

    Purchase outright, or start with a Robots-as-a-Service pilot and scale from there.

    Pricing options

Ready to automate your tightest workflows?

Book a demo and see C2 Mini in a space like yours.
