AMR cart for sheet goods & kits

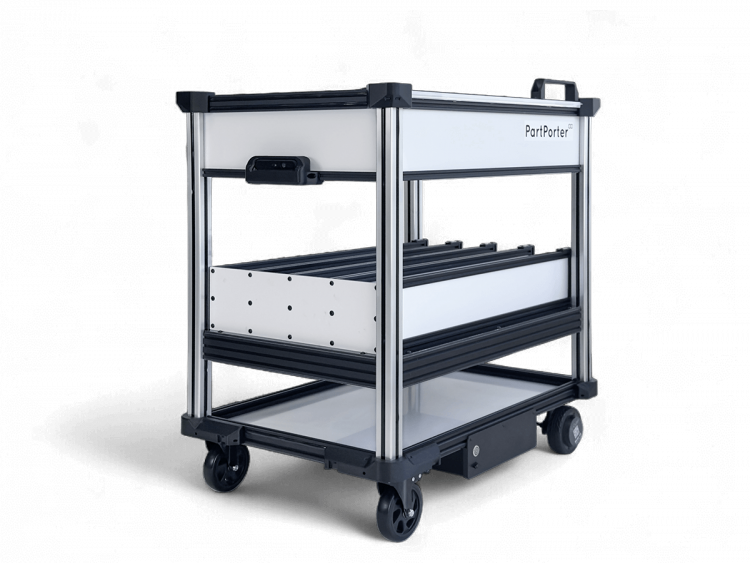

Model C2 PartPorter
Purpose-built for woodworking, cabinetry, and fabrication. It moves cut sheets, panels, and pre-sorted kits from station to station, up to 250 lb at a time.
- Payload capacity
- 250 lb
- Minimum aisle width
- 5 ft
- Shelves
- 2 × 125 lb
- Run time, up to
- 16 hrs
Is it the right fit?
From cut sheets to finished panels.

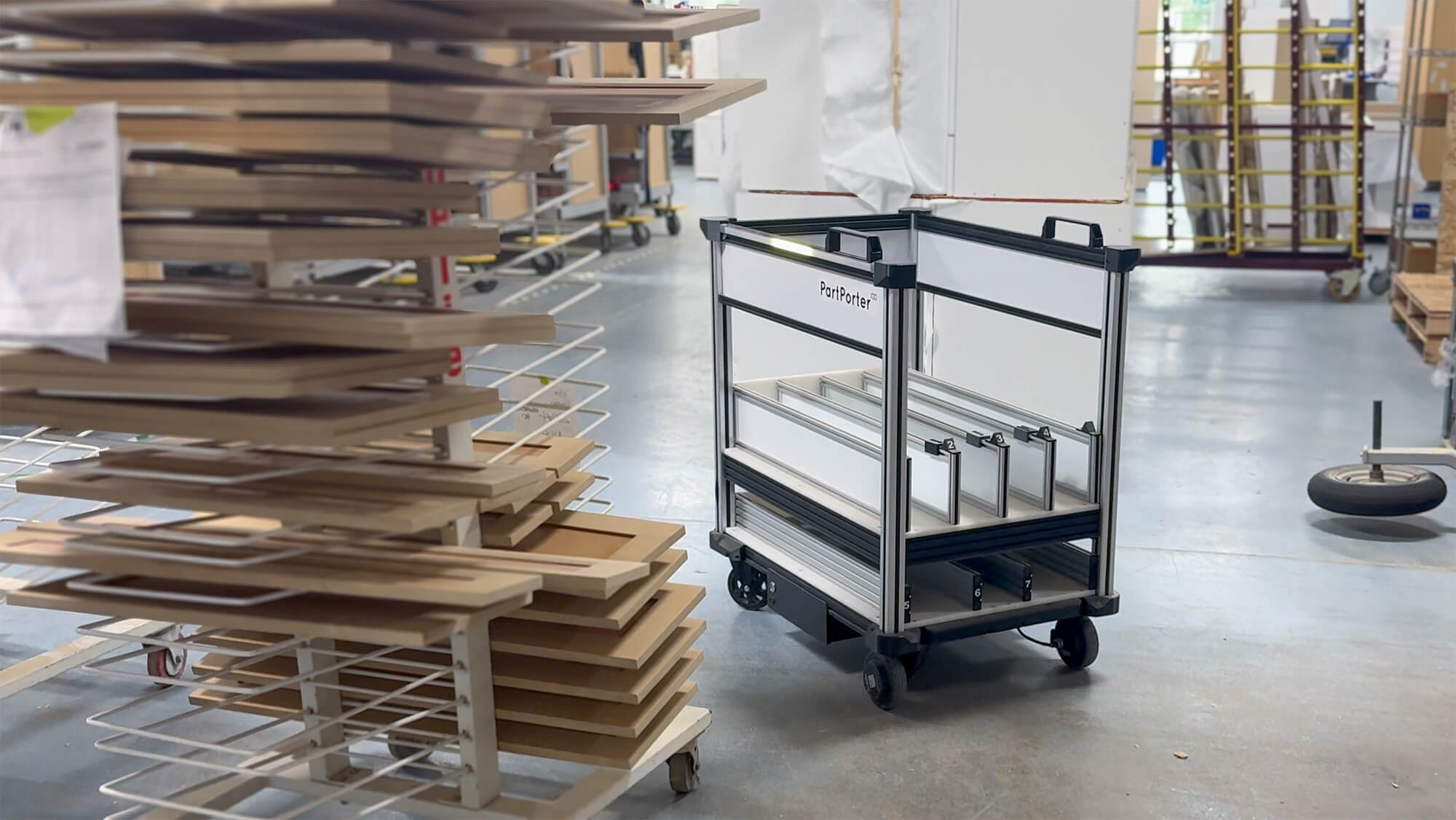

C2 PartPorter carries large, flat material and organized kits through your shop, and protects finished surfaces on the way.
Great for moving
- Cut sheets
- Panels & boards
- Cabinet parts
- Doors & fronts
- Drywall pieces
- Finished & painted parts
- Pre-sorted assembly kits
Between
- Saws & CNC
- Edgebanders
- Finishing & paint
- Assembly stations
- Shipping

What’s different
Designed around large, flat parts.
-
Open-back frame

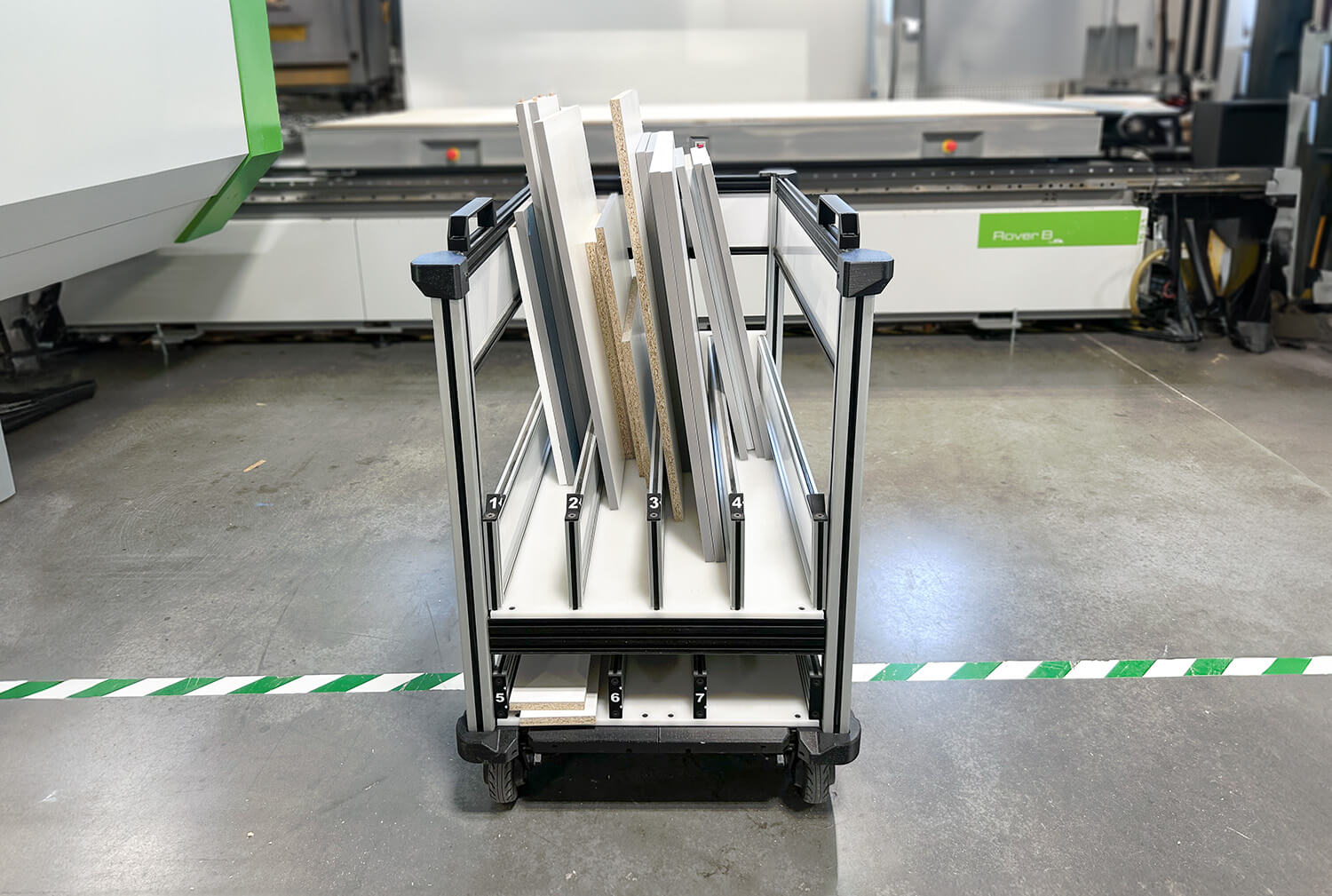

Slide large, flat material on and off without obstruction, which is easier and faster for your team.
-
Protects finished surfaces

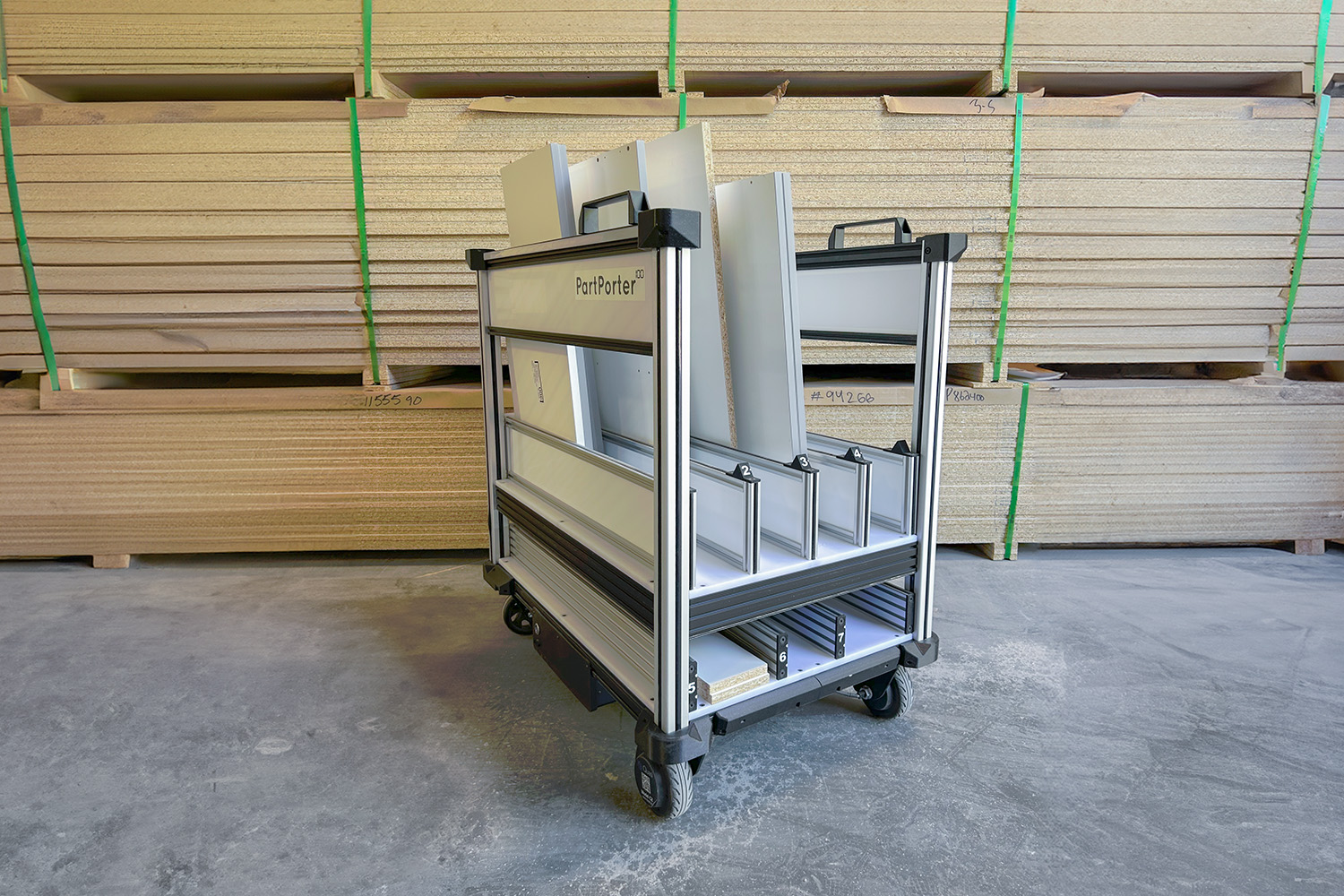

Optional dividers keep finished or painted parts apart, so they arrive without damage.
-
Pre-organized kits
Numbered compartments sort assembly kits by job and cut search time at the workstation.
-
Side-mounted controls
The touchscreen sits on the side, clear of the rear loading path.
-
Low, reinforced deck
Carries up to 250 lb with a low center of gravity, for stable transport of tall or top-heavy loads.
Specifications
C2 PartPorter at a glance
The numbers that matter for planning your floor and your loads.
| Capacity & size | |
|---|---|
| Total payload suggested maximum | 250 lb 113 kg |
| Payload per shelf | 125 lb 56.5 kg |
| Shelves | 2 |
| Shelf size | 32.25 × 20.5 in 820 × 520 mm |
| Minimum aisle width | 5 ft 1.5 m |
| Footprint length × width | 40.5 × 24.42 in 1030 × 620 mm |
| Height | 41.5 in 1055 mm |
| Weight with battery | 59.5 lb 27 kg |
| Drive & navigation | |
| Drivetrain | Two-wheel drive |
| Steering | Differential |
| Time-of-Flight safety sensors | 26 sensors, 1,664-point infrared array |
| Navigation sensors | 360° LiDAR, stereo vision camera, and infrared sensor array on every model |
| Maximum working area | Up to 500,000 sq ft 46,500 m² |
| Maximum slope mark ramps with a slope zone | 10° (about 18% grade) empty; about 5% grade half loaded, 3% fully loaded |
| Speed | Configurable in the interface |
| Battery & charging | |
| Run time up to | 16 hours |
| Energy stored | 720 Wh |
| Fast charge to 50% | ~60 min |
| Full charge | ~2.5 hours |
| Wireless docking & charging | Optional |
| Battery | NCA chemistry with battery management system about 3 years or 1,000 charge cycles |
| Shipping | |
| Shipping crate | 48 × 45 × 34 in 1219 × 1143 × 864 mm |
| Shipping weight | 120 lb 54 kg |
Options & ownership
Everything else you’ll want to know.
-
Wireless docking & charging
C2 PartPorter can dock and recharge on its own, between assignments or on a schedule, with no plugs and no contacts.
About wireless charging -
Same software as every Model C2
Quasi AI navigation, the onboard touchscreen, the C2 Remote app, and Cloud Connect® all work the same way on C2 PartPorter.
Software & app -
Buy it or subscribe
Purchase outright, or start with a Robots-as-a-Service pilot and scale from there.
Pricing options
Ready to automate material flow in your shop?
Book a demo and see C2 PartPorter with your panels.
