Higher-capacity AMR cart

Model C2 Large

Bigger shelves and a reinforced build for oversized components and heavier loads: up to 225 lb on 3 shelves of 32.25 × 20.5 in.

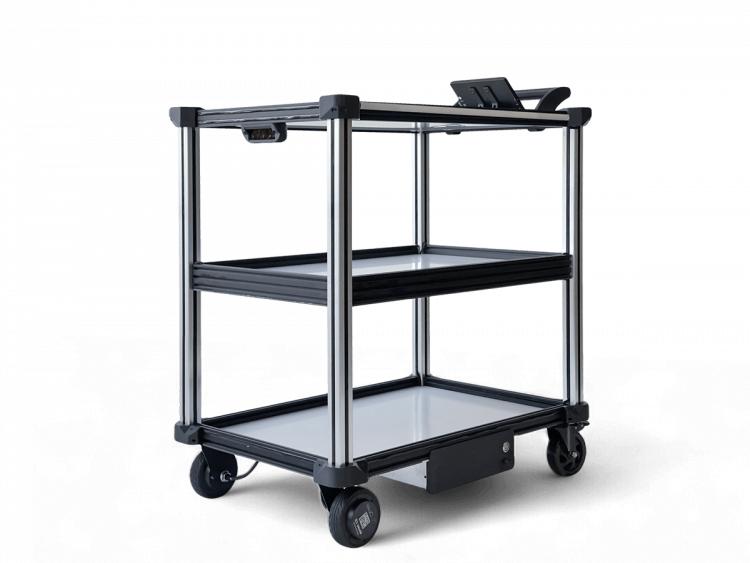

Model C2 Large autonomous mobile cart with three wide shelves
Payload capacity
225 lb
Minimum aisle width
4 ft
Shelves
3 × 75 lb
Run time, up to
16 hrs

Is it the right fit?

More material, fewer trips.

C2 Large moves oversized bins, larger components, and bulk supplies across bigger facilities, so your team waits less and gets more done.

Great for moving

  • Oversized bins & totes
  • Larger components
  • Bulk supplies
  • Kitted assemblies
  • Packaging materials
  • Tool kits
  • Finished goods

Between

  • Stockrooms
  • Assembly areas
  • Production lines
  • Warehouses
  • Shipping & receiving

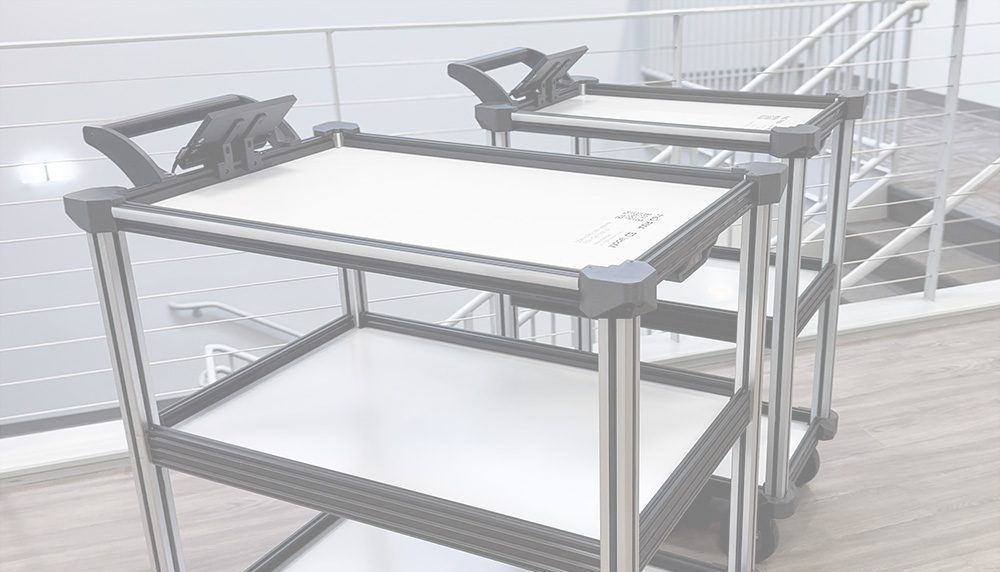

Two Model C2 Large carts in an office lobby

What’s different

Bigger shelves. Same agility.

  • Three large shelves

    Each 32.25 × 20.5 in shelf holds up to 75 lb, for 225 lb in total.

  • Higher throughput

    Delivers more material in fewer trips, cutting wait times at workstations and speeding up turnaround.

  • Same agile navigation

    The same Quasi AI navigation as every Model C2 handles tight turns and busy floors with ease.

  • Wireless charging option

    Docks and recharges on its own between assignments, with no plugs and no contacts.

  • Safe around your team

    Time-of-Flight sensing (26 sensors, 1,664-point infrared array), 360° LiDAR, and stereo vision watch for people and obstacles on every side.

Watch

See C2 Large in motion.

Specifications

C2 Large at a glance

The numbers that matter for planning your floor and your loads.

Model C2 Large specifications
Capacity & size
Total payload suggested maximum225 lb 100 kg
Payload per shelf75 lb 34 kg
Shelves3
Shelf size32.25 × 20.5 in 820 × 520 mm
Minimum aisle width4 ft 1.2 m
Footprint length × width40.5 × 24.42 in 1030 × 620 mm
Height41.5 in 1055 mm
Weight with battery61.7 lb 28 kg
Drive & navigation
DrivetrainTwo-wheel drive
SteeringDifferential
Time-of-Flight safety sensors26 sensors, 1,664-point infrared array
Navigation sensors360° LiDAR, stereo vision camera, and infrared sensor array on every model
Maximum working areaUp to 500,000 sq ft 46,500 m²
Maximum slope mark ramps with a slope zone10° (about 18% grade) empty; about 5% grade half loaded, 3% fully loaded
SpeedConfigurable in the interface
Battery & charging
Run time up to16 hours
Energy stored720 Wh
Fast charge to 50%~60 min
Full charge~2.5 hours
Wireless docking & chargingOptional
BatteryNCA chemistry with battery management system about 3 years or 1,000 charge cycles
Shipping
Shipping crate48 × 45 × 34 in 1219 × 1143 × 864 mm
Shipping weight122 lb 55 kg

Options & ownership

Everything else you’ll want to know.

  • Wireless docking & charging

    C2 Large can dock and recharge on its own, between assignments or on a schedule, with no plugs and no contacts.

    About wireless charging
  • Same software as every Model C2

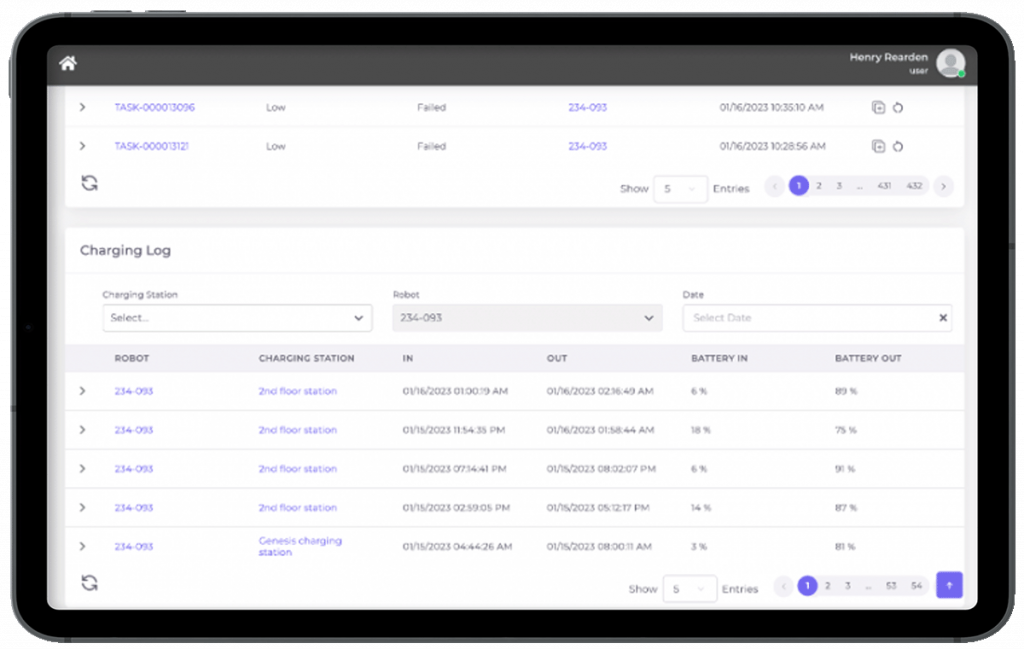

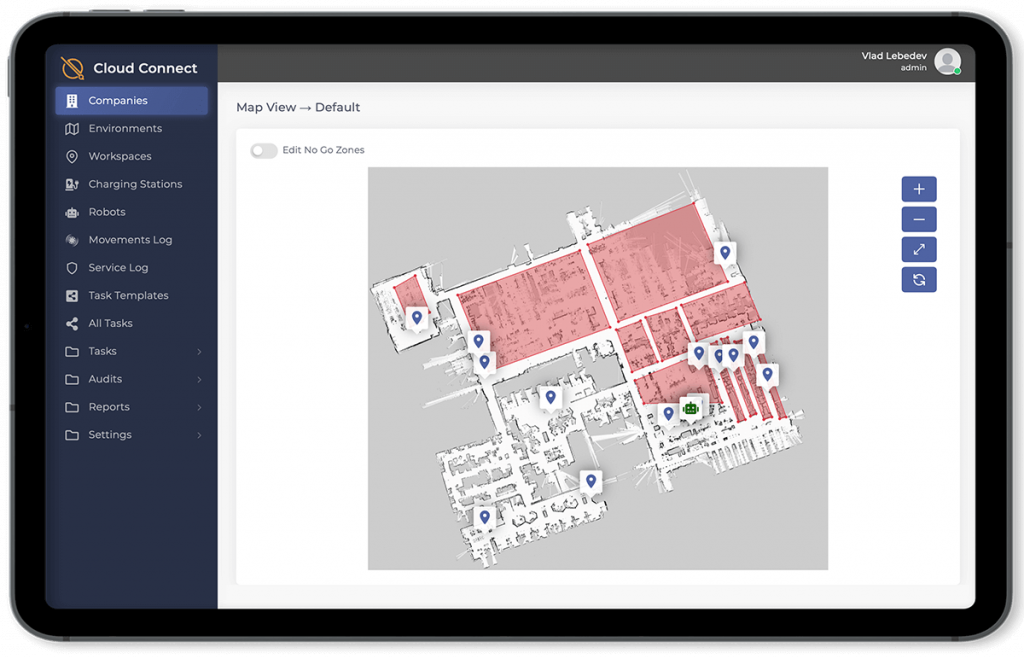

    Quasi AI navigation, the onboard touchscreen, the C2 Remote app, and Cloud Connect® all work the same way on C2 Large.

    Software & app
  • Buy it or subscribe

    Purchase outright, or start with a Robots-as-a-Service pilot and scale from there.

    Pricing options

Ready to move more with every trip?

Book a demo and see C2 Large with your loads.
